water fan coil-wall split type

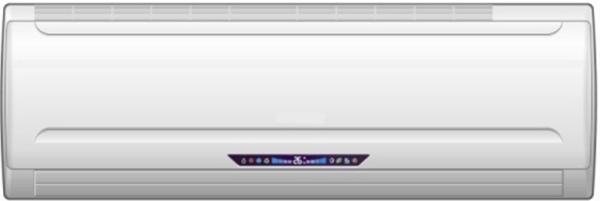

Water fan coil-wall split type

Wall mounted fan coil unit type in 2 tubes

model(2 tube system)				FP-34BM-V	FP-51BM-V	FP-136BM-V
power supply				220V,50Hz,1Ph
air volume		H	m³/h	306	459	1280
		M		257	349	970
		L		171	247	700
static pressure			Pa	0	0	0
cooling capacity	TH	H	W	1440	2160	6330
	TH		BTU/h	4913	7370	21598
	SH		W	1080	1620	4750
	SH		BTU/h	3685	5527	16207
	TH	M	W	1210	1815	5315
	TH	M	W	801	1147	3530
	SH	L	W	933	1399	4080
	SH	L	W	551	816	2520
heating capacity	H		W	2160	3240	9500
	M		W	1759	2639	7730
	L		W	1285	1927	5620
noise	H	0Pa	dB(A)	37	39	46
power input	H	0Pa	W	30	38	100
waterflow volume			m³/h	0.25	0.37	0.93
water pressure dropping			kPa	10	11	23.5
dimension of water(in & out)connection pipe			in	ZG1/2"	ZG1/2"	ZG1/2"
dimension of water(in & out)connection pipe			out	ZG1/2"	ZG1/2"	ZG1/2"
coil			type	high efficient copper pipe to wear Hydrophilic aluminum coil
The maximum pressure			MPa	1.6	1.6	1.6
dimension of water drain pipe			mm	￠16	￠16	￠16
unit dimennsion	L×W×H		mm	795285215	795285215	1090＊330＊255
unit weight			kg	11.2	11.2	16.5

For more product pls click below items you are intersted in:

1) Light commercial air conditioners:

cassette type air conditioner, duct type air conditioner, ceiling floor air conditioner(also called aire acondicionado piso techo tipo)and floor standing air conditioner,multi DC inverter air conditioner.

Aire acondicionado piso techo, muy bueno equipos aires acondicionados para Latina amarica.

Our ceiling floor type air conditioner, sells very good in Latin American countries.

2) Industrial air conditioners:

Super energy saving system: VRF air conditioner , our vrf air conditioner indoor units include duct type, cassette type, ceiling floor type and wall split type. Our VRF air conditioner outdoor unit with mini cool from 8-16kw, and modular cool from 22kw to 45kw, all modular outdoor unit can be added as per project request.

Best seller for Middle east : packaged rooftop unit,also called rooftop packed units, or packaged air conditioner.

Our smallest capacity is 17kw, and we can make up to 280kw, additional functions for our packaged rooftop units include:electric heater, fresh air return, heat recovery, co2 test and air control, etc.

Fan coil units also called water fan coil,it is terminal units for chiller system.

Dekon water fan coil unit types include:

cassette four way fan coil unit type, cassette one way fan coil unit type,ceiling concealed duct fan coil unit type,

ceiling floor fan coil unit type, universal fan coil unit type and wall split fan coil unit type.

Our water fan coil has been supplied to more than 25 countries in the world.

household mini chillers: from 8kw up to 50kw.

air cooled modular chillers: 55kw to 130kw.

air cooled screw chillers: more than 1500kw

DEKON, your one stop HVAC solutions.
