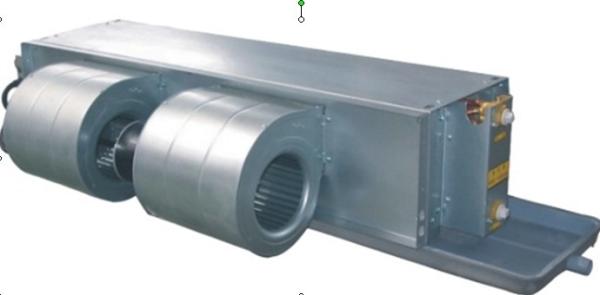

Ceiling concealed duct fan coil unit-1360CFM (2 TUBES)

Product Categories

Ningbo Dekon New Energy Co., Ltd

Contact Now

Add to Cart

Ceiling concealed duct fan coil unit-1360CFM (2 TUBES)

model(2 tube system)				FP-102WA	FP-136WA	FP-170WA	FP-204WA	FP-238WA
power supply				220V,50Hz,1Ph
air volume		H	m³/h	1020	1360	1700	2040	2380
		M		765	1040	1280	1550	1800
		L		530	710	860	1050	1280
static pressure			Pa	12(30)	12(30)	12(30)	12(30)	12(30)
cooling capacity	TH	H	W	5400	7200	9000	10800	12600
	TH		BTU/h	18425	24566	30708	36850	42991
	SH		W	4023	5364	6705	8046	9387
	SH		BTU/h	13726	18302	22877	27453	32028
	TH	M	W	4374	5832	7290	8748	10206
	TH	M	W	3455	4607	5759	6911	8063
	SH	L	W	3402	4536	5670	6804	7938
	SH	L	W	2790	3720	4649	5579	6509
heating capacity	H		W	8100	10800	13500	16200	18900
	M		W	6237	8316	10395	12474	14553
	L		W	4901	6534	8168	9801	11435
noise	high speed	12Pa	dB(A)	43	44	45	46	49
noise		30Pa	dB(A)	48	49	50	52	54
power input		12Pa	W	91	118	146	182	216
power input		30Pa	W	98	132	168	206	247
waterflow volume			m³/h	0.93	1.23	1.54	1.85	2.16
water pressure dropping			kPa	28	30	22	30	36
dimension of water(in & out)connection pipe				ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of water(in & out)connection pipe				ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"	ZG3/4"
dimension of water drain pipe			mm	ZG3/4"
dimension	L×W×H		mm	1070458230	1328458230	1593458230	1708458230	1928458230
weight			kg	28	30	34	37	40
